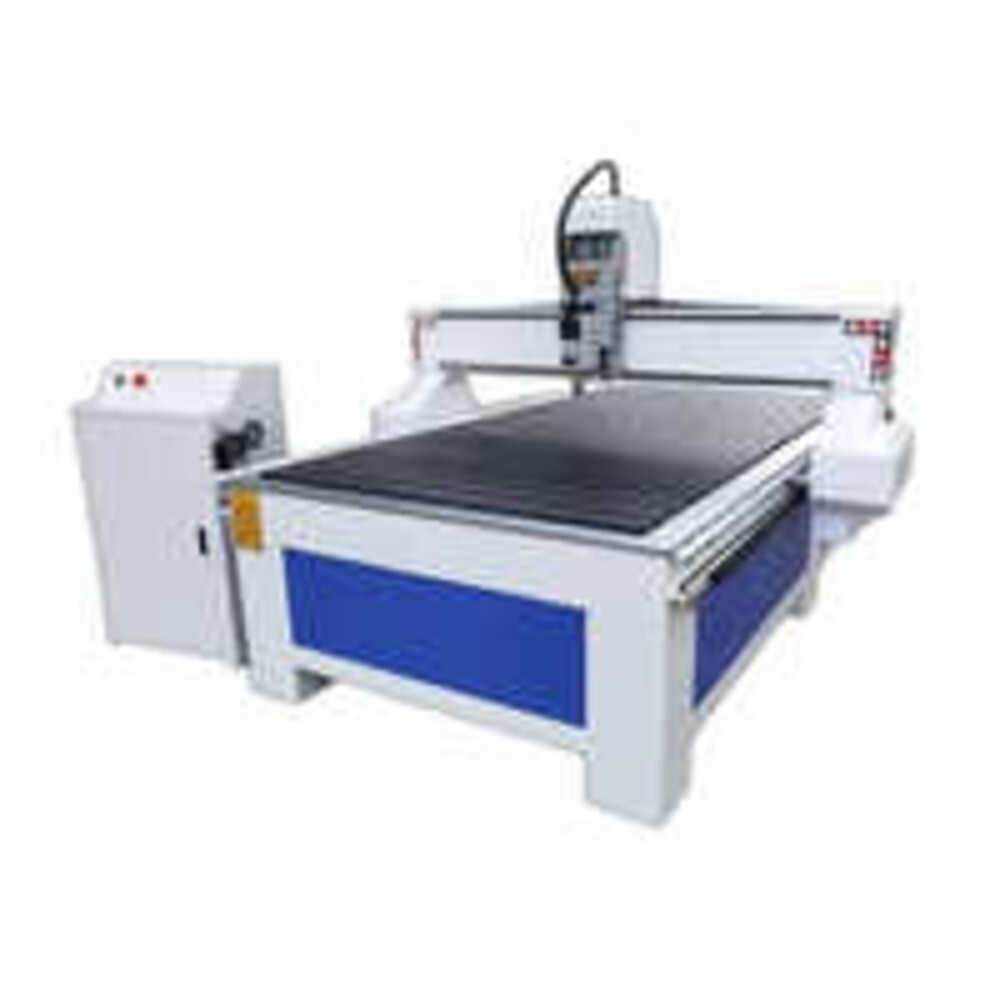

Wood CNC Router Machine with Rotary Attachment

Name: Wood CNC Router Machine with Rotary Attachment
Brand: Infinity Designs Solutions
Price: 500000 INR
Availability: InStock

Price 500000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Wood CNC Router Machine with Rotary Attachment Specification

Product Type
Wood CNC Router Machine with Rotary Attachment

General Use
Woodworking, Door Making, Panel Carving, 3D Engraving, Cylindrical Work

Material
Wood, MDF, Acrylic, PVC, Soft Metals

Type
CNC Router

Capacity
Designed for continuous industrial operation

Weight (kg)
1500 kg - 2200 kg (Depends on model)

Computerized
Yes

Automatic
Yes

PLC Control
Available (Optional)

Bar Feeder
Not Included

Power Source
Electric

Power Consumption
3 kW - 6 kW (Depends on configuration)

Rigidity
High Rigidity Structural Design

Voltage
220V/380V, 50Hz/60Hz (Optional)

Motor
Stepper/Servo Motor

Table Size
1300 mm x 2500 mm (Standard), Customizable

Spindle Speed
0-24000 RPM (Variable)

Axial Choice
3 Axis + 4th Rotary Axis

Dimension (L*W*H)
3000 mm x 2000 mm x 1700 mm (Approx.)

Feature
Rotary Attachment for Cylindrical Carving, Heavy Duty Steel Frame

Color
Blue & White (Standard), Customizable

Positioning Accuracy
0.02 mm

Dust Collection
Supported (Dust Collector Port Provided)

Transmission
Helical Rack Gear Drive

Repeat Positioning
0.05 mm

Operating System
Windows Compatible

Spindle Power
3.5 kW / 4.5 kW / 6 kW (optional)

Working Environment
0-45C, Humidity 35-75% (Non-condensing)

Software Compatibility
ArtCAM, Type3, JD Paint, UG, Alphacam, etc.

Travel Speed
up to 30,000 mm/min

Rotary Diameter Capacity
up to 300 mm

Rotary Length Capacity
1500 mm - 2000 mm (Customizable)

Drive System
Rack and Pinion (X, Y), Ball Screw (Z)

Cooling Type
Water-cooled/Air-cooled Spindle (Optional)

Controller System
DSP / NC Studio / Mach3 / Syntec (Optional)

Wood CNC Router Machine with Rotary Attachment Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Main Domestic Market
All India

About Wood CNC Router Machine with Rotary Attachment

Buy the latest Wood CNC Router Machine with Rotary Attachment and take command of your woodworking projects with meritorious efficiency. This extraordinary machine offers spindle power options between 3.5 kW and 6 kW, customizable rotary capacities up to 2000 mm, high-rigidity design, and speeds up to 30,000 mm/min. Equipped with advanced rack and pinion drive, helical rack gear transmission, and versatile controller choices, it ensures a commanding performance. Compatible with leading software and boasting automatic operations, this is your powerful, industrial-grade choice for doors, panels, 3D carving, and cylindrical projects. Try Now for seamless craftsmanship!

Features, Directions, and Versatile Usage of Wood CNC Router Machine

This Wood CNC Router Machine with Rotary Attachment features a robust steel frame, powerful variable-speed spindles, and customizable rotary axis capacities, making it perfect for intricate wood, MDF, and acrylic designs. Users should set up the machine in a dust-controlled environment, input design files via compatible software, and select appropriate spindle and drive options. Its usage type is industrial-ideal for door making, panel cutting, 3D engraving, and cylindrical work-delivering effortless, precision-controlled output for professionals.

Sample Policy, Packaging, and Export Markets for Reliable Delivery

Shipped goods are carefully packed in secure wooden crates, ensuring damage-free delivery of each machine. Our sample policy includes valuation based on configuration and export order size, typically shipped after confirmation. Shipped to key international markets, our distribution spans India, Europe, the Middle East, and Asia. Comprehensive documentation and export-ready packaging are provided for a smooth transaction, ensuring customers receive their high-value Wood CNC Router Machines promptly and safely, maintaining optimum operational standards.

FAQ's of Wood CNC Router Machine with Rotary Attachment:

Q: How does the rotary attachment enhance the CNC router's capabilities?

A: The rotary attachment allows the machine to carve and engrave cylindrical objects, expanding its functionality to include columns, balusters, and other round workpieces that standard flatbed machines cannot handle.

Q: What is the process for setting up and operating this CNC router?

A: To begin, install the machine in a suitable environment, connect to the recommended power source, choose the spindle and control system, load your design using compatible software (like ArtCAM or Alphacam), secure your material, and follow the on-screen prompts to calibrate and initiate carving.

Q: Where can this Wood CNC Router Machine be used most effectively?

A: This machine excels in woodworking shops, door and furniture manufacturing, panel carving units, signage production, and any facility requiring precision CNC work on wood, MDF, acrylic, or soft metals.

Q: What software can be used with this CNC router for design compatibility?

A: The machine is compatible with widely used software such as ArtCAM, Type3, JD Paint, UG, Alphacam, and more, giving users flexibility in design creation and processing.

Q: What are the main benefits of using this Wood CNC Router Machine?

A: Key benefits include high precision (0.02 mm positioning accuracy), industrial-grade build for heavy-duty use, customizable features, the ability to perform complex rotary and flat work, reliable dust collection, and automatic operation for maximum productivity.

Q: When can customers expect shipped goods to be delivered?

A: Delivery times depend on order volume, destination, and customization requirements; however, goods are typically shipped within agreed timelines following receipt of payment and order confirmation.
