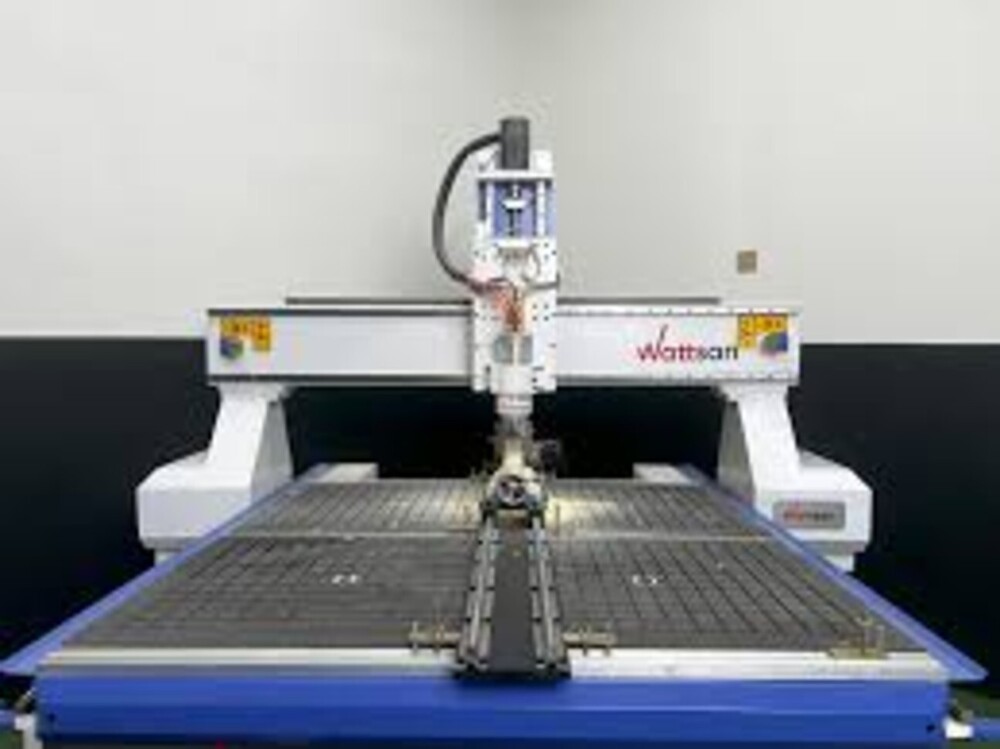

4 Axis CNC Routers

Name: 4 Axis CNC Routers
Brand: Infinity Designs Solutions
Price: 650000.0 INR
Availability: InStock

Price 650000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

4 Axis CNC Routers Specification

Product Type
4 Axis CNC Router

General Use
Carving, Engraving, 3D processing, Woodworking, Mold making

Material
Compatible with wood, plastic, foam, soft metals, composites

Type
CNC Router Machine

Capacity
Upto 300 mm workpiece height

Weight (kg)
2000-2800 kg depending on configuration

Computerized
Yes

Automatic
Yes

PLC Control
Available (with optional configuration)

Bar Feeder
Optional

Power Source
Electric

Power Consumption
7.5 kW - 15 kW (Depending on configuration)

Rigidity
Heavy-duty heavy cast chassis

Voltage
380V/50Hz 3 Phase (Custom options available)

Motor
High-performance stepper/servo motor

Table Size
1300 x 2500 mm or customized

Spindle Speed
0-24000 RPM

Axial Choice
X, Y, Z, and Rotational Axis (A axis)

Dimension (L*W*H)
3200 x 2200 x 1800 mm (approximate)

Feature
Simultaneous 4-axis control, Automatic tool changer (optional)

Color
White & Blue

Spindle Power
6.0KW / 7.5KW / 9.0KW (Optional)

Software Compatibility
Compatible with ArtCAM, Type3, UG, Pro/E, etc.

Dust Collection
Dual-port dust extraction system

Chuck Diameter
80 mm / 125 mm (Rotary device, optional)

Controller
NC Studio / Syntec / DSP handheld (as per selection)

Safety System
Emergency stop, Limit switches, Safety covers

Drive System
Ball screw transmission / Rack and pinion (selectable as per model)

Max Travel Speed
25m/min

Tool Magazine
Linear or Carousel type (optional)

Cooling System
Water cooled / Air cooled spindle (model dependent)

Repeat Precision
0.02 mm

Operating Temperature
0 to 45C

4 Axis CNC Routers Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Main Domestic Market
All India

About 4 Axis CNC Routers

Machine Type	4 Axis
Model
Job Material	Wood
Spindle Head Type	Single Spindle
Spindle Speed	24000 RPM
X-Y Movement	Rack & Pinion
Z Movement	Ball Screw
Condition	New
Country of Origin	Made in India

Precision and Power for Professional Applications

Achieve remarkable repeatability and smooth surfaces with a machine capable of simultaneous 4-axis control. The CNC router's choice of ball screw or rack and pinion drive ensures optimal performance based on operational needs, while spindle speeds up to 24,000 RPM empower you to handle both delicate and heavy-duty tasks efficiently.

Flexible Customization for Every Project

Configured to match your workflow, this model offers options like rotary axes for cylindrical work, automatic tool changers, and customizable table sizes. Select between water or air cooling, a variety of spindle powers, and input voltages suited to your workspace requirements. The table can handle parts up to 1300 x 2500 mm, supporting endeavors from furniture production to detailed model creation.

FAQ's of 4 Axis CNC Routers:

Q: How does the 4 Axis CNC Router enhance productivity during engraving and 3D processing?

A: The machine features simultaneous 4-axis control, allowing complex 3D and rotary machining in a single setup. With a repeat precision of 0.02 mm and travel speeds up to 25m/min, projects are completed with high efficiency and accuracy, reducing manual handling and setup time.

Q: What materials can be processed using this CNC router?

A: This CNC router is engineered to handle a range of materials including wood, plastics, foam, soft metals, and composite materials, making it suitable for woodworking, mold making, sign creation, and prototyping tasks.

Q: When should I choose a ball screw transmission versus a rack and pinion drive system?

A: Ball screw transmissions excel in high-precision, low-speed applications-ideal for intricate work and fine engraving. Rack and pinion drives offer rapid movement across larger workpieces, making them preferable for bulk processing or when speed is essential.

Q: Where can this CNC router be installed and what are its power requirements?

A: Designed for industrial, commercial, or educational environments, the CNC router operates on 380V/50Hz 3-phase electricity. Power consumption ranges from 7.5 kW to 15 kW depending on configuration, and custom voltage options are available upon request.

Q: What is the process for changing tools, and is an automatic tool changer available?

A: Users can manually change tools or opt for an automatic tool changer in linear or carousel configurations. Automatic tool changers streamline production by reducing downtime and supporting more complex or multi-step jobs without manual intervention.

Q: How does the dual-port dust extraction system benefit machine operation?

A: The dual-port dust extraction system efficiently removes debris during machining, ensuring a cleaner work area. This improves cut quality, extends spindle and tool life, and reduces maintenance needs by keeping sensitive components free from dust and chips.
