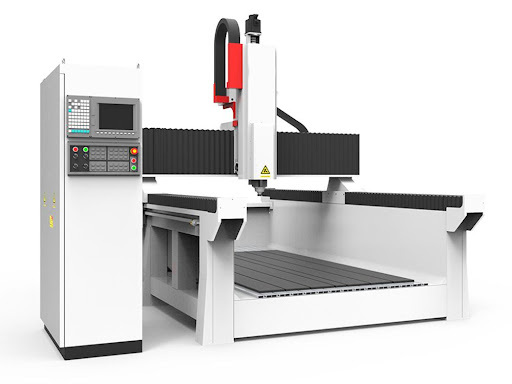

3 Axis Heavy Duty CNC Router Machine

Name: 3 Axis Heavy Duty CNC Router Machine
Brand: Infinity Designs Solutions
Price: 650000 INR
Availability: InStock

Price 650000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

3 Axis Heavy Duty CNC Router Machine Specification

Product Type
3 Axis Heavy Duty CNC Router Machine

General Use
Wood, Acrylic, Plastic, MDF, Composite, Aluminum Cutting/Engraving

Material
Cast Iron Body, Steel Frame

Type
Automatic CNC Router

Capacity
Continuous Industrial Duty

Weight (kg)
1200 kg

Computerized
Yes

Automatic
Yes

PLC Control
Optional (Standard Controller Provided)

Bar Feeder
Not Included

Power Source
Electric

Power Consumption
5-7.5 kW (Depending on Model)

Rigidity
High

Voltage
380V/415V, 3 Phase, 50/60Hz

Motor
Stepper/Servo Motor

Table Size
1300 x 2500 mm (Custom Available)

Spindle Speed
6000-24000 RPM (Variable)

Axial Choice
X, Y, Z (3 Axis)

Dimension (L*W*H)
3200 x 2100 x 1850 mm

Feature
Heavy Duty, High Precision, Stable Structure

Color
Blue & White

Guide Rail
Hiwin / THK Linear Square Guides

Max Workpiece Height
Up to 200 mm

Spindle Cooling
Water Cooling / Air Cooling (As Required)

Software Compatibility
ArtCAM, Type3, UG, Pro/E, MasterCAM, Ucancam, etc.

Dust Collection
Inbuilt Option Available

Max Travel Speed
40,000 mm/min

Table Structure
T-slot Table / Vacuum Table (Optional)

Operating System
Windows/Linux Supported

Drive System
Rack & Pinion for X/Y, Ball Screw for Z

Repeat Positioning Accuracy
0.02 mm

Working Area
1300 x 2500 x 200 mm

Spindle Power
3.5 kW/6 kW/9 kW (Optional)

Tool Change
Manual / Automatic Tool Changer (Optional)

Control System
DSP / NC Studio / Syntec (Optional)

3 Axis Heavy Duty CNC Router Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Main Domestic Market
All India

3 Axis Heavy Duty CNC Router Machine About

Experience top-notch efficiency and flawless precision with our 3 Axis Heavy Duty CNC Router Machine. Designed with an unrivaled working area of 1300 x 2500 x 200 mm, it offers advanced access to a spectrum of cutting, engraving, and shaping tasks. Choose between high-performance spindle options (3.5 kW/6 kW/9 kW) and state-of-the-art cooling systems. Driven by superior Rack & Pinion and Ball Screw mechanisms, this machine ensures high rigidity, exceptional repeat positioning accuracy (0.02 mm), and continuous industrial-duty operation. Compatible with leading software and supporting both Windows and Linux, this CNC router stands as your ultimate choice for advanced manufacturing excellence in wood, acrylic, plastic, aluminum, and composites.

Applications & Advantages of 3 Axis Heavy Duty CNC Router Machine

Our heavy-duty CNC router is perfect for advanced manufacturing sites across industries such as woodworking, signage, and metal fabrication. Its stable cast iron structure provides flawless operation on a variety of surfaces-wood, acrylic, MDF, plastics, composites, and aluminum-ensuring top-tier output every time. The superior T-slot and vacuum table options enhance the diversity of applications, while high precision and reliable rigidity deliver consistent results that set new standards for fabrication excellence.

Payment Terms, Packaging & Export Markets

We streamline the order processing experience to ensure a smooth procurement journey. Payment terms are flexible to suit your outlay preferences, supporting advance purchase and secure transactions. Each machine is expertly packaged for international transit, prioritizing safety and integrity. Our commitment guarantees quick dispatch to reach clients across major export markets including Europe, Middle East, Asia, and North America, making us a trusted distributor, exporter, manufacturer, supplier, and trader from India.

FAQ's of 3 Axis Heavy Duty CNC Router Machine:

Q: How does the 3 Axis Heavy Duty CNC Router Machine achieve high precision and flawless operation?

A: The machine utilizes advanced rack & pinion drives for X/Y axes and a ball screw mechanism for the Z axis, paired with high-rigidity construction and guide rails from Hiwin or THK. This combination delivers repeat positioning accuracy of 0.02 mm, ensuring precise and flawless output across diverse materials.

Q: What surfaces and materials can this CNC router process?

A: This CNC router is designed for top-level performance on a broad range of materials, including wood, acrylic, plastics, MDF, composites, and aluminum. Its table structure and tool change options make it ideal for cutting, engraving, and shaping various surfaces in high-demand industrial settings.

Q: When is an automatic tool changer recommended for this model?

A: An automatic tool changer is recommended when your production requires frequent tool swaps for varied tasks, boosting workflow efficiency and minimizing downtime, especially in continuous or large-scale manufacturing environments.

Q: Where can this CNC router be utilized for maximum benefit?

A: This advanced machine is ideal for fabrication workshops, sign-making units, furniture manufacturing plants, and industries requiring precision parts and components in wood, metal, and composites.

Q: What is the process for order processing and dispatch?

A: Upon receiving your order and agreed outlay, our team initiates a streamlined processing protocol, ensures secure packaging, and guarantees quick dispatch to local or international destinations, supporting your productivity with minimum lead time.

Q: How does software compatibility enhance machine usage?

A: With unrivaled compatibility for software like ArtCAM, MasterCAM, UG, and more, users can easily integrate popular CAD/CAM programs, making it simple to design, simulate, and execute tasks, resulting in top-notch workflow efficiency.
