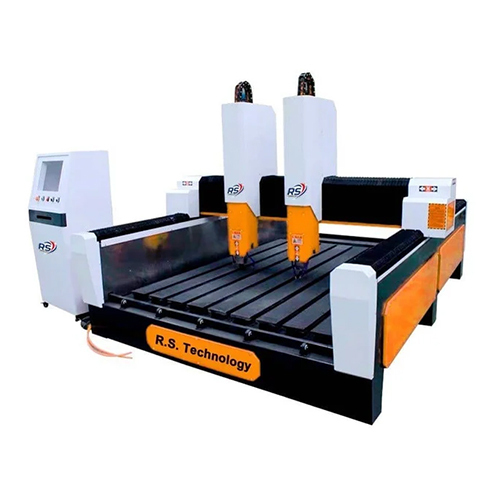

Cnc Stone Engraving Router Machine

Name: Cnc Stone Engraving Router Machine
Brand: Infinity Designs Solutions
Price: 750000 INR
Availability: InStock

Price 750000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cnc Stone Engraving Router Machine Specification

Product Type
CNC Stone Engraving Router Machine

General Use
Stone Engraving, Cutting, Carving

Material
Granite, Marble, Stone, Ceramic, Tiles

Type
Automatic CNC Router

Capacity
Up to 200 mm Work Thickness

Weight (kg)
1800 kg

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
Not Included

Power Source
Electric

Power Consumption
4.5 kW

Rigidity
High

Voltage
AC 380V/50Hz

Motor
Stepper Motor

Table Size
1300 x 2500 mm

Spindle Speed
0-24000 RPM

Axial Choice
3 Axis (X, Y, Z)

Dimension (L*W*H)
3200 x 2200 x 1850 mm

Feature
High Precision, Durable Structure, Water Cooling Spindle

Color
Blue & White

Cooling Mode
Water Cooling System

Working Environment
Temperature 0-45C, Humidity 30-75%

Supported File Format
G Code, HPGL, PLT, DXF, ENG

Lubrication System
Automatic Lubrication

Software Compatibility
Compatible with ArtCAM, Type3, Ucancam, JDpaint

Operator Interface
LCD Display with Keypad

Spindle Power
5.5 kW Water Cooled Spindle

Repeatability
0.05 mm

Dust Collection
Optional Dust Collector Attachment

Max Travelling Speed
25,000 mm/min

Resolution
0.01 mm

Workpiece Clamping
Fixture Clamping System

Transmission
XY Rack and Pinion Drive, Z Ball Screw

Control System
DSP Control System

Protection
Overload and Short Circuit Protection

Cnc Stone Engraving Router Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Main Domestic Market
All India

About Cnc Stone Engraving Router Machine

X-Y Axis Working Area	1300 x 2500 mm
Z Axis Working Area	500 mm
Spindle Power	5.5 kW
Model	ST-1325
Machine Type	3 Axis
Job Material	Artificial Stone, Black Graphite, Marble, Sandstone, Stone
Spindle Head Type	Multi-Spindle
Maximum Engraving Speed	12 m/min
Maximum Working Speed	5-6 m/min
Spindle Speed	6000-24000 rpm/min
X-Y Movement	Rack & Pinion Transmission
Z Movement	Ball Screw Transmission
Driven Motor	Servo Motor
Machine Dimension	1440*3040 mm
Machine Condition	New
Country of Origin	Made in India

We are a leading Manufacturer of CNC Stone Engraving Machine and ST-1325 3 Axis CNC Stone Engraving Machine .

Advanced Control and Precision Engineering

The CNC Stone Engraving Router Machine integrates a DSP control system with a high-precision water-cooled spindle, offering consistent results on a variety of stone surfaces. Its sturdy construction and high rigidity ensure reliable long-term performance, while automatic lubrication and optional dust collection streamline maintenance, minimizing downtime.

Flexible Software Compatibility

Compatible with ArtCAM, Type3, Ucancam, and JDpaint, this CNC router accommodates multiple workflow requirements. File support is extensive, including G Code, HPGL, PLT, DXF, and ENG formats, making project setup straightforward for designers and operators.

Efficient and User-Friendly Operation

The touchscreen LCD display with keypad provides an intuitive interface, complemented by fixture clamping, overload protection, and an effective water cooling system. With a maximum traveling speed of 25,000 mm/min and the ability to engrave up to 200 mm thick workpieces, the machine delivers both speed and flexibility for demanding production environments.

FAQ's of Cnc Stone Engraving Router Machine:

Q: How does the DSP control system enhance the operation of the CNC Stone Engraving Router Machine?

A: The DSP control system streamlines machine programming, enabling precise, real-time adjustments and smooth operation. It offers a user-friendly interface, making it easier to set up and execute complex engraving, cutting, and carving jobs with exceptional accuracy.

Q: What materials can be processed with this CNC router, and what is its maximum workpiece thickness?

A: This CNC router is designed for stone materials including granite, marble, ceramic, and tile. It supports workpieces up to 200 mm in thickness, making it suitable for a broad range of engraving and cutting tasks.

Q: When should the automatic lubrication system be maintained, and what is its role?

A: The automatic lubrication system keeps the moving parts properly oiled to reduce wear and extend machine life. It requires periodic inspection according to your scheduled maintenance routine, typically every few months, depending on usage intensity.

Q: Where is the best environment to install and operate this machine?

A: For optimal performance, install the router in a temperature-controlled environment between 0-45C with 30-75% humidity. This ensures stable operation and helps maintain precision and equipment longevity.

Q: What is the process for clamping and securing workpieces during operation?

A: The machine employs a fixture clamping system. After placing your stone workpiece on the bed, secure it firmly using the provided fixtures to prevent movement during engraving or cutting, ensuring precise results and operational safety.

Q: How does the water cooling system benefit the spindle and overall machine function?

A: The water cooling system maintains optimal spindle temperature during high-speed operation, preventing overheating. This not only preserves spindle life but also ensures consistent performance for demanding, continuous projects.

Q: What advantages does this CNC router offer for industrial stoneworking businesses?

A: With its high rigidity, large working area, compatibility with industry-leading software, and precision operation, the machine boosts productivity and delivers durable, high-quality results. Overload and short circuit protection add to workplace safety, making it a reliable investment for manufacturers and exporters.
