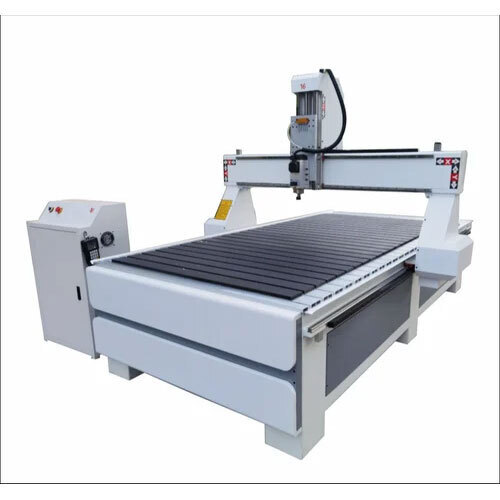

High Speed CNC Wood Carving Machine (900A 1200 mm) with 3 kW Spindle for 3D Carving

Send Inquiry

Request To Call Back

High Speed CNC Wood Carving Machine (900A 1200 mm) with 3 kW Spindle for 3D Carving

Name: High Speed CNC Wood Carving Machine (9001200 mm) with 3 kW Spindle for 3D Carving
Brand: Infinity Designs Solutions
Price: 650000 INR
Availability: InStock

Price 650000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

High Speed CNC Wood Carving Machine (900A 1200 mm) with 3 kW Spindle for 3D Carving Specification

Product Type
High Speed CNC Wood Carving Machine

General Use
3D Wood Carving, Panel Processing, Furniture Decoration

Material
Wood, MDF, Plastic, Acrylic

Type
CNC Router

Capacity
8-10 Sheets/Day (Depending on Job)

Weight (kg)
Approx. 950 kg

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
No

Power Source
Electric

Power Consumption
3.5 kW

Rigidity
High Rigidity Industrial Frame

Voltage
220V/380V, 50/60Hz

Motor
Step Motor Drive System

Table Size
900 1200 mm

Spindle Speed
0-24000 RPM (Variable)

Axial Choice
XYZ 3 Axis

Dimension (L*W*H)
1650 1400 1750 mm

Feature
High Speed, 3D Carving, Precision Cutting, Automatic Tool Change Optional

Color
Blue/White/Custom

Repeat Positioning Accuracy
0.05 mm

Software Compatibility
ArtCAM, Type3, Ucancam, Mach3, Aspire

Control System
DSP A11 / NK105 / Mach3 (User Option)

Max Travelling Speed
15000 mm/min

Dust Collector
Optional External Dust Collector

Collet Type
ER20

Operating System
Windows (PC Based)

Resolution
0.01 mm

Max Working Speed
8000 mm/min

Cooling Mode
Water Cooling

Spindle Power
3 kW Water Cooled Spindle

Travel (X, Y, Z)
900 1200 200 mm

Command Code
G Code

High Speed CNC Wood Carving Machine (900A 1200 mm) with 3 kW Spindle for 3D Carving Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Main Domestic Market
All India

About High Speed CNC Wood Carving Machine (900A 1200 mm) with 3 kW Spindle for 3D Carving

High Speed CNC Wood Carving Machine (900-1200 mm) with 3 kW Spindle for 3D Carving

6,30,001Get Latest Price

Working Area	900-1200 mm
X-Y Axis Working Area	600 x 600 mm
XY Axis Working Area	600 x 600 mm
Spindle Power	3 kW
Application	3D Carving
Z Axis Working Area	150 mm
Automatic Grade	Fully Automatic
Material	Wood ,Plastics and Non metal
Frequency (Hz)	50-60 Hz
Job Material	Wood
Weight (kg)	930 kg
Voltage	220 V
Dimension	308019201500 cm
Country of Origin	Made in India

Precision and Speed for Professional Results

This CNC wood carving machine combines a high-powered 3 kW water-cooled spindle and step motor drive system, enabling fast and exceptionally accurate 3D carving. With a max resolution of 0.01 mm and repeat positioning accuracy of 0.05 mm, users can trust this router for consistent, high-quality results on every project, whether crafting detailed furniture or processing multiple MDF sheets.

Seamless Compatibility & User Flexibility

The machine effortlessly integrates with leading software including ArtCAM, Type3, Aspire, and Mach3, supporting G Code commands. It offers the choice between DSP A11, NK105, or Mach3 controls for flexibility, and operates on a Windows-based PC for straightforward user management. This adaptability streamlines setup and daily operation for both novice and professional users.

Built for Industrial Demands

With its high-rigidity frame and robust build, this CNC router is designed for demanding tasks in industrial settings. The optional automatic tool changer and dust collector further enhance productivity and working conditions. Its 8-10 sheet daily capacity accommodates high-throughput environments, making it an ideal investment for manufacturers, furniture makers, and decorators.

FAQ's of High Speed CNC Wood Carving Machine (900A1200 mm) with 3 kW Spindle for 3D Carving:

Q: How do I operate the High Speed CNC Wood Carving Machine for 3D carving tasks?

A: To operate the machine, connect it to a Windows PC, install compatible software such as ArtCAM or Mach3, and load your 3D carving designs using G Code. Choose your preferred control system (DSP A11, NK105, or Mach3), secure your workpiece, select the relevant tool collet (ER20), and begin the automated carving process.

Q: What materials and capacities can this CNC router handle?

A: This CNC wood carving machine is engineered to process wood, MDF, plastic, and acrylic. It supports a working area of 9001200200 mm and can handle approximately 8-10 sheets per day depending on the complexity of the designs and materials being processed.

Q: When is the external dust collector necessary?

A: The optional external dust collector is recommended when working with materials that produce significant dust or debris, such as MDF or wood, to maintain a clean work environment and protect machine components for longer operational life.

Q: Where can the High Speed CNC Wood Carving Machine be installed?

A: This machine is suitable for installation in workshops, manufacturing units, woodworking facilities, and educational institutions with floors capable of supporting its 950 kg weight. Ensure proper access to a 220V/380V, 50/60Hz power source, and adequate space for its 165014001750 mm dimensions.

Q: What is the process for changing tools or bits on this CNC router?

A: The machine uses ER20 collets for tool holding. Manual tool changes are standard, but for higher productivity, an automatic tool change system is available as an option. Always power off and follow safety guidelines when changing tools.

Q: How does using this CNC router benefit my production or business?

A: With its high speed, repeatable accuracy, and support for intricate 3D carving, the machine enables faster production, consistent output quality, and expanded design possibilities. Optional features like automatic tool change and dust collection further optimize workflow and shop cleanliness.

Q: What software is required or recommended for design and operation?

A: Recommended and supported software packages include ArtCAM, Type3, Ucancam, Mach3, and Aspire, all compatible with the machine's G Code command protocol and Windows-based PC environment, ensuring versatility for design and machine control.
